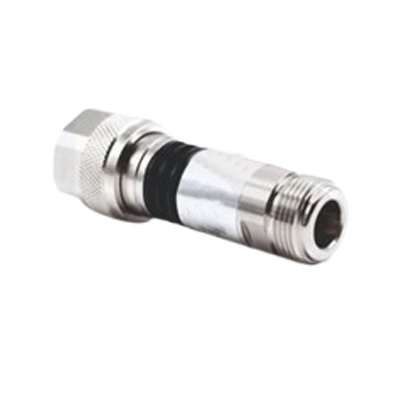

20dB Fixed Attenuator, N Male to N Female 5Watts Up to 6 GHz
| Frequency Range: DC-6Ghz |
| Impedance: 50ohm |
| VSWR: 1.3:1 |
| Nominal Attenuator: 20dB |
| Insulators: PTFE |
| Connector Parts: Material – Plating |
| Body: Brass – Nickel |
| Pin Contacts: Beryllium copper – Gold |
| Coupling Nut: Brass – Nickel |
| Power Input: 5Watt |
An N male to N female attenuator is a device used to decrease the signal strength in an RF transmission line, featuring an N-type male connector on one end and an N-type female connector on the other.
