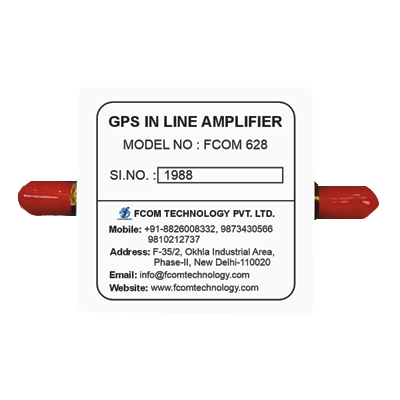

GPS In Line Amplifier
Specification
- Name: GPS IN LINE AMPLIFIER
- Model No: FCOM 628
- Frequency: 1575.42 ± 10 MHZ
- Gain: 28 ± 1 dB
- Noise Figure: _1.5 dB
- Input voltage: 5 ± 0.25V DC
- Current: <25mA
- Impedance: 50Ω
- VSWR: 2.0:1 (MAX)
- Length X Width: 43mm (leaving connector)
Mechanical Specification
- Length X Width: 43±0.5 mm (leaving connector)
60±1.5 mm (along with connector) - Thickness or Height: 14.6±0.5 mm
