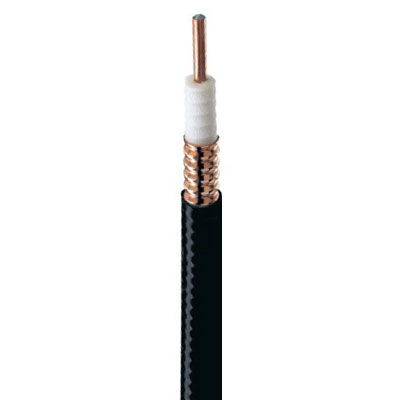

LDF4-50A

Description

Cable Impedance	50 ohm ±1 ohm
Capacitance	75.8 pF/m \| 23.104 pF/ft
dc Resistance, Inner Conductor	1.48 ohms/km \| 0.451 ohms/kft
dc Resistance, Outer Conductor	3.3 ohms/km \| 1.006 ohms/kft
dc Test Voltage	4000 V
Inductance	0.19 µH/m \| 0.058 µH/ft
Insulation Resistance	100000 MOhms-km
Jacket Spark Test Voltage (rms)	8000 V
Operating Frequency Band	1 – 8800 MHz
Peak Power	40 kW
Velocity	88 %

Frequency	Attenuation (db/100 m)	Attenuation (db/100 ft)	Average power (kw)
1.0 MHz	0.211	0.064	36.11
1.5 MHz	0.259	0.079	29.46
2.0 MHz	0.299	0.091	25.50
10.0 MHz	0.672	0.205	11.35
20.0 MHz	0.954	0.291	7.99
30.0 MHz	1.172	0.357	6.51
50.0 MHz	1.521	0.463	5.02
85.0 MHz	1.995	0.608	3.82
88.0 MHz	2.031	0.619	3.76
100.0 MHz	2.169	0.661	3.52
108.0 MHz	2.256	0.688	3.38
150.0 MHz	2.673	0.815	2.85
174.0 MHz	2.887	0.880	2.64
200.0 MHz	3.103	0.946	2.46
204.0 MHz	3.135	0.956	2.43
300.0 MHz	3.835	1.169	1.99
400.0 MHz	4.462	1.360	1.71
450.0 MHz	4.749	1.447	1.61
460.0 MHz	4.804	1.464	1.59
500.0 MHz	5.021	1.530	1.52
512.0 MHz	5.085	1.550	1.50
600.0 MHz	5.533	1.686	1.38
700.0 MHz	6.009	1.831	1.27
800.0 MHz	6.456	1.968	1.18
824.0 MHz	6.560	1.999	1.16
894.0 MHz	6.885	2.089	1.11
960.0 MHz	7.124	2.171	1.07
1000.0 MHz	7.284	2.220	1.05
1218.0 MHz	8.110	2.472	0.94
1250.0 MHz	8.226	2.507	0.93
1500.0 MHz	9.093	2.771	0.84
1700.0 MHz	9.744	2.970	0.78
1794.0 MHz	10.039	3.060	0.76
1800.0 MHz	10.058	3.066	0.76
2000.0 MHz	10.666	3.251	0.72
2100.0 MHz	10.961	3.341	0.70
2200.0 MHz	11.251	3.429	0.68
2300.0 MHz	11.535	3.516	0.66
2500.0 MHz	12.090	3.685	0.63
2700.0 MHz	12.627	3.849	0.60
3000.0 MHz	13.407	4.086	0.57
3400.0 MHz	14.401	4.389	0.53
3600.0 MHz	14.882	4.536	0.51
3700.0 MHz	15.118	4.608	0.50
3800.0 MHz	15.353	4.679	0.50
3900.0 MHz	15.585	4.750	0.49
4000.0 MHz	15.815	4.820	0.48
4100.0 MHz	16.042	4.889	0.48
4200.0 MHz	16.268	4.958	0.47
4300.0 MHz	16.492	5.027	0.46
4400.0 MHz	16.714	5.094	0.46
4500.0 MHz	16.934	5.161	0.45
4600.0 MHz	17.153	5.228	0.44
4700.0 MHz	17.370	5.294	0.44
4800.0 MHz	17.585	5.360	0.43
4900.0 MHz	17.798	5.425	0.43
5000.0 MHz	18.010	5.489	0.42
6000.0 MHz	20.055	6.113	0.38
8000.0 MHz	23.826	7.262	0.32
8800.0 MHz	25.244	7.694	0.30

Frequency band	Vswr	Return loss (db)
680–800 MHz	1.130	24.30
800–900 MHz	1.130	24.30
1700–2200 MHz	1.130	24.30
2300–2700 MHz	1.130	24.30

Dielectric Material	1.150Foam PE
Jacket Material	PE
Inner Conductor Material	Copper-clad aluminum wire
Outer Conductor Material	Corrugated copper

Minimum Bend Radius, multiple Bends	127 mm \| 5 in
Minimum Bend Radius, Single Bend	50.8 mm \| 2 in
Number of Bends, minimum	15
Number of Bends, typical	50
Tensile Strength	113 kg \| 249.122 lb
Bending Moment	3.8 N-m \| 33.633 in lb
Flat Plate Crush Strength	2 kg/mm \| 111.995 lb/in

Installation temperature	-40 °C to +60 °C (-40 °F to +140 °F)
Operating Temperature	-55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature	-70 °C to +85 °C (-94 °F to +185 °F)
Attenuation, Ambient Temperature	20 °C \| 68 °F
Average Power, Ambient Temperature	40 °C \| 104 °F
Average Power, Inner Conductor Temperature	100 °C \| 212 °F

Cable weight	0.22 kg/m \| 0.148 lb/ft

Agency	Classification
CENELEC	EN 50575 compliant, Declaration of Performance (DoP) available
CHINA-ROHS	Below maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
UK-ROHS	Compliant
REACH-SVHC	Compliant as per SVHC revision on www.andrew.com/ProductCompliance
