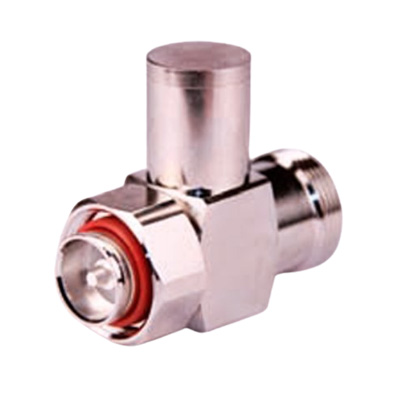

Surge Arrestor
Surge Arrestor
- Lightning Surge current: 30KA
- Lightning Surge capability: 100times@30KA
Specifications
- Frequency Range: 0.8GHz~2.5GHz
- VSWR: ≤1.1@800-2500 MHz
- Insertion Loss: ≤ 0.1dB
- Power(Max): 1000W
- Insulation: ≥1x104MΩ
- Impedance: 50Ω
- Current: (KA@8/2µS)
- Connector: 7/16 Din(F), 7/16 Din(M)
