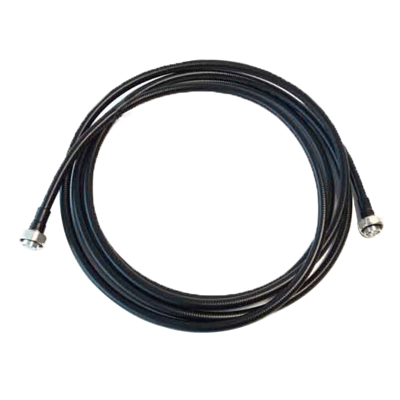

Description
Specifications
| Impedance | 50±1 Ω |
| Frequency | DC-2.2GHz |
| Relative Velocity of Propagation | 81% |
| Return Loss | ≤-28 dB 800 – 1000 MHz ≤-26 dB 1700-2200 MHz |
Insertion Loss | ≤0.10dB/m (cable) +0.1 dB (2 connectors) 900MHz≤0.15dB/m (cable) +0.1 dB (2 connectors) 1800MHz≤0.16 dB/m (cable) +0.1dB (2 connectors) 2200 MHz |
| Peak Power Rating | 16 KW |
| DC breakdown Voltage | 2500 V |
| Power Handling(at 20°C, Sea Level,VSWR 1.0) | 800W@1 GHz 500W@2 GHz |
| Insulation Resistance | ≥ 10 GΩ-Km |
| Intermodulation (3rd order) | ≤ -117 dBm |
| Intermodulation Test Method | Two +43 dBm Carriers |
| According to | IEC 60169-4, VG 95250, EN 122190, DIN 47223 (DIN 7/16) IEC 60169-16, MIL-PRF-39012, CECC22210 (N) |
| Min. bending radius, single | 25 mm | |
| Min. bending radius, repeated | 35 mm | |
| Cable | Inner conductor Dielectric Outer conductor Jacket option | Copper clad aluminium wire Highly foamed polyethylene Spiral corrugated copper tube PE/FRNC |
| Connector | Center contact Insulator Outer contact Gasket | Brass/Silver-plated PTFE Brass/Alloy-Plated Silicone Rubber |
| Operation temperature | -45°C ~ 85°C |
| Vibration | MIL-STD-202, Meth.204,Cond.B |
| Shock | MIL-STD-202, Meth.213,Cond.B |
| Corrosion | MIL-STD-202, Meth.101 |
| Degree of Protection (mated pair) | IP67 |
| RoHS | Compliant |
| For attenuation, VSWR 1.0 , ambient temperature 20 °C |
| For Average Power, VSWR 1.0 , ambient temperature 40 °C |
| Inner conductor temperature 100 °C, no solar loading |
For VSWR (Return Loss) specifications corresponding to your required frequency band, please contact Frontier.
