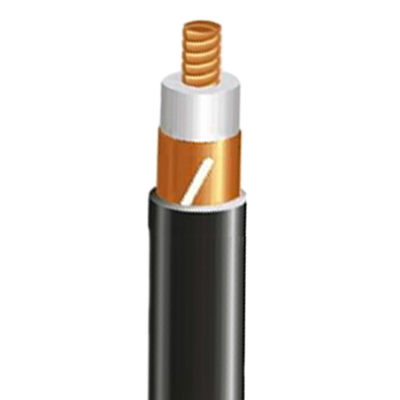

Description
| Weight (+5%) |
F-R Jacket |
Nominal 0.97 kg/m |
| Minimum Bending Radius |
|
500 mm |
| Tensile Strength |
|
2000N |
| Operating Temperature |
F-R Jacket |
-40℃~+80℃ |
| DC Resistance Inner Conductor |
2.00 Ω/km |
| DC Resistance Outer Conductor |
3.00 Ω/km |
| Dielectric Strength |
DC 10,000V For 1 Min |
| Min. Insulation Resistance |
5,000 MΩ.km |
| Velocity of Propagation |
89+2% |
| Peak Power Rating |
90 kW |
| Characteristic Impedance |
50+2Ω |
| VSWR |
|
| 790~960MHz |
Max.1.30 |
| 1700~1900MHz |
Max.1.30 |
| 1920~2025MHz |
Max.1.40 |
| 2110~2200MHz |
Max.1.40 |
| 3300~3700MHz |
Max.1.40 |
| Frequency (MHz) |
Attenuation dB/100m |
Coupling Loss 95% (2M) |
| 700 |
2.7 |
85 |
| 800 |
2.8 |
78 |
| 900 |
3.0 |
76 |
| 1800 |
4.6 |
72 |
| 1900 |
4.8 |
71 |
| 2000 |
5.0 |
70 |
| 2200 |
5.4 |
70 |
| 2400 |
5.8 |
69 |
| 2600 |
6.2 |
69 |
| 2700 |
6.5 |
68 |
| 3400 |
8.4 |
67 |
| 3500 |
9.0 |
67 |
| 3600 |
9.8 |
67 |
| 3700 |
11.2 |
68 |
| 3800 |
12.0 |
67 |
- *Attenuation / Coupling Loss are nominal values.
- *The cable has stop bands at 313~353MHz and 646~686MHz.
- *The attenuation may rise by 0.2%/℃ with ambient temperature rising.
- *Maximum attenuation value shall not exceed 110% of nominal value.
- *Maximum coupling loss value shall not exceed “nominal value ± 5dB”.
We are continuously working to enhance our products; therefore, specifications may change. For the latest details, please feel free to contact us.
