1/2" F Copper Leaky (Fire Retardant Low Smoke and Zero Halogen) FR, LS, ZH - Optional

1/2″ F Copper Leaky (Fire Retardant Low Smoke and Zero Halogen) FR, LS, ZH – Optional

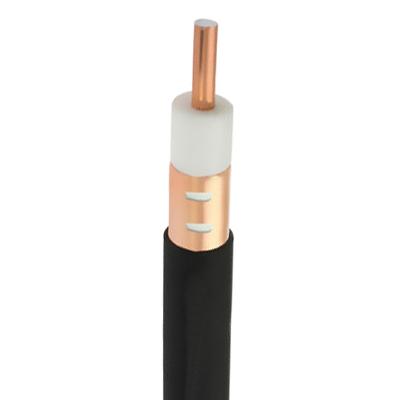

Flexible Foam Dielectric Leaky Feeder Cable

Model: 1/2″ F Copper Leaky (Fire Retardant Low Smoke and Zero Halogen) FR, LS, ZH – Optional

CONSTRUCTION

Inner Conductor: Smooth copper tube Nominal 4.80+0.20 mm
Dielectric: Foamed polyethylene Nominal 12.50+0.50 mm
Outer Conductor: Overlapped copper foil with punched leaky slots 13.00+0.50 mm
Jacket: Flame-Retardant/Halogen-Free black PE Nominal 15.70+0.50 mm

Category: Leaky Cable

Description

Description

Weight (+5%)	F-R Jacket	Nominal 0.24 kg/m
Minimum Bending Radius		250 mm
Tensile Strength		122 kg/1200N
Operating Temperature	F-R Jacket	-30℃~+80℃

DC Resistance Inner Conductor	1.97 Ω/km
DC Resistance Outer Conductor	5.50 Ω/km
Dielectric Strength	DC 4,000V For 1 Min
Min. Insulation Resistance	10,000 MΩ.km
Velocity of Propagation	89+3%
Peak Power Rating	35 kW
Characteristic Impedance	50+3Ω

Frequency (MHz)	Attenuation dB/100m	Coupling Loss 50%	Coupling Loss 95%
150	3.11	46	58
400	5.59	53	57
700	7.00	53	57
900	7.90	56	60
960	8.50	57	62

*Attenuation / Coupling Loss are nominal values.
*The cable has stop bands at 313~353MHz and 646~686MHz.
*The attenuation may rise by 0.2%/℃ with ambient temperature rising.
*Maximum attenuation value shall not exceed 110% of nominal value.
*Maximum coupling loss value shall not exceed “nominal value ± 10dB”.

We are continuously working to enhance our products; therefore, specifications may change. For the latest details, please feel free to contact us.
