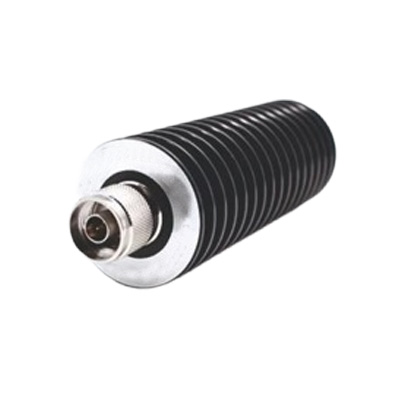

20 dB Fixed Attenuator, N Male to N Female 100 Watts Up to 6 GHz
| Frequency Range: DC-6Ghz |
| Power Input: 100Watt |
| VSWR: 1.3:1 |
| Pin Contacts: Beryllium copper – Gold |
| Impedance: 50Ohm |
| Body: Brass – Suco-plated |
| Coupling Nut: Brass – Suco-plated |
| Nominal Attenuator: 20dB |
| Insulators: PTFE |
| Durability (matings): 500 |
N attenuators come with different fixed or variable attenuation levels, typically measured in decibels (dB), to reduce the signal strength by a specific amount.
