7/8" F Copper Leaky (Fire Retardant Low Smoke and Zero Halogen) FR, LS, ZH - Optional

7/8″ F Copper Leaky (Fire Retardant Low Smoke and Zero Halogen) FR, LS, ZH – Optional

Flexible Foam Dielectric Leaky Feeder Cable

Model: 7/8″ F Copper Leaky (Fire Retardant Low Smoke and Zero Halogen) FR, LS, ZH – Optional

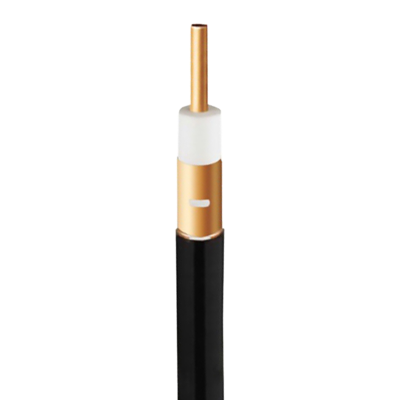

CONSTRUCTION

Inner Conductor: Smooth copper tube Nominal 9.50+0.250 mm
Dielectric: Foamed polyethylene Nominal 23.20+0.50 mm
Outer Conductor: Overlapped copper foil with punched leaky slots 23.40+0.50 mm
Jacket: Flame-Retardant/Halogen-Free black PE Nominal 27.40+0.50 mm

Category: Leaky Cable

Description

Description

Weight (+5%)	F-R Jacket	Nominal 0.41 kg/m
Minimum Bending Radius		800 mm
Tensile Strength		215 kg/2100N
Operating Temperature	F-R Jacket	-30℃~+80℃

DC Resistance Inner Conductor	1.90 Ω/km
DC Resistance Outer Conductor	2.50 Ω/km
Dielectric Strength	DC 6,000V For 1 Min
Min. Insulation Resistance	10,000 MΩ.km
Velocity of Propagation	89+2%
Peak Power Rating	90 kW
Characteristic Impedance	50+2Ω

Frequency (MHz)	Attenuation dB/100m	Coupling Loss 50%	Coupling Loss 95%
150	1.62	59	61
400	3.10	61	65
450	3.41	61	77
700	4.75	67	77
900	6.04	60	65

*Attenuation / Coupling Loss are nominal values.
*The cable has stop bands at 313~353MHz and 646~686MHz.
*The attenuation may rise by 0.2%/℃ with ambient temperature rising.

We are continuously working to enhance our products; therefore, specifications may change. For the latest details, please feel free to contact us.
