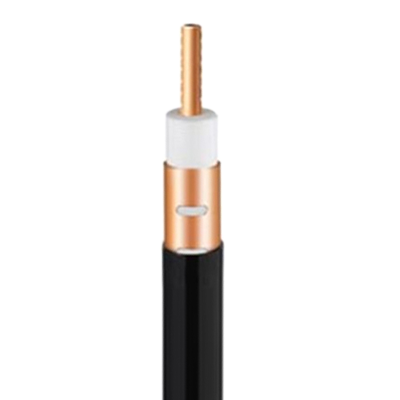

Description
| Weight (+5%) |
F-R Jacket |
Nominal 0.97 kg/m |
| Single Bending Radius |
|
500 mm |
| Multiple Bending Radius |
|
800 mm |
| Bending Moment |
|
14.0 N-m |
| Tensile Strength |
|
255 kg/2500N |
| Operating Temperature |
F-R Jacket |
-40℃~+70℃ |
| Installation Temperature |
|
-20℃~+70℃ |
| Storage Temperature |
|
-40℃~+70℃ |
| DC Resistance Inner Conductor |
2.00 Ω/km |
| DC Resistance Outer Conductor |
2.50 Ω/km |
| Dielectric Strength |
DC 9,000V For 1 Min |
| Min. Insulation Resistance |
10,000 MΩ.km |
| Velocity of Propagation |
89+2% |
| Peak Power Rating |
90 kW |
| Characteristic Impedance |
50+2Ω |
| Capacitance |
76 pF/m |
| Jacket Spark Test Voltage |
10000 Vrms |
| Frequency (MHz) |
Attenuation dB/100m |
Coupling Loss 50% |
Coupling Loss 95% |
| 75 |
0.72 |
55 |
60 |
| 150 |
1.03 |
59 |
69 |
| 450 |
2.00 |
61 |
66 |
| 700 |
2.85 |
60 |
66 |
| 900 |
3.65 |
59 |
65 |
- *Attenuation / Coupling Loss are nominal values.
- *The Cable has stop bands at 313~353MHZ and 646~686MHZ.
- *The attenuation may rise by 0.2%/℃ with ambient temperature rising.
- *Maximum attenuation value shall not exceed 110% of nominal value.
- *Maximum coupling loss value shall not exceed “nominal value + 10dB”.
We are continuously working to enhance our products; therefore, specifications may change. For the latest details, please feel free to contact us.
