Flexible Foam Dielectric Leaky Feeder Cable (7/8" Leaky Cable)

Flexible Foam Dielectric Leaky Feeder Cable (7/8″ Leaky Cable)

Flexible Foam Dielectric Leaky Feeder Cable

Model: (7/8″ Leaky cable)

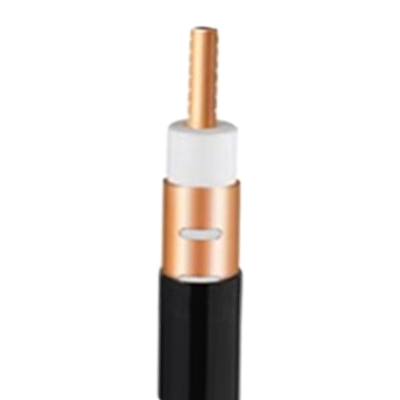

CONSTRUCTION

Inner Conductor: Smooth copper tube Nominal 9.50+0.20 mm
Dielectric: Foamed polyethylene Nominal 23.20+0.50 mm
Outer Conductor: Overlapped copper foil with punched leaky slots 23.40+0.50 mm
Jacket: Flame-Retardant/Halogen-Free black PE Nominal 27.40+0.50 mm

Category: Leaky Cable

Description

Description

Weight (+5%)	F-R Jacket	Nominal 0.42 kg/m
Minimum Bending Radius		500 mm
Tensile Strength		1300N
Operating Temperature	F-R Jacket	-40℃~+80℃

DC Resistance Inner Conductor	1.69 Ω/km
DC Resistance Outer Conductor	3.50 Ω/km
Dielectric Strength	DC 6,000V For 1 Min
Min. Insulation Resistance	10,000 MΩ.km
Velocity of Propagation	89+2%
Peak Power Rating	91 kW
Characteristic Impedance	50+2Ω
VSWR
790~960	Max.1.30
1700~1900	Max.1.30
1920~2025	Max.1.40
2110~2200	Max.1.40
2300~2500	Max.1.40
2500~2600	Max.1.40

Frequency (MHz)	Attenuation dB/100m	Coupling Loss 95% (2 MTR)
700	4.3	85
800	4.4	80
900	4.6	80
1800	8.5	75
1900	10.0	73
2400	10.0	73
2600	16.9	72
2700	18.7	72

*Attenuation / Coupling Loss are nominal values.
*The attenuation may rise by 0.2%/℃ with ambient temperature rising.
*Maximum attenuation value shall not exceed 110% of nominal value.
*Maximum coupling loss value shall not exceed “nominal value ± 5dB”.

We are continuously working to enhance our products; therefore, specifications may change. For the latest details, please feel free to contact us.
