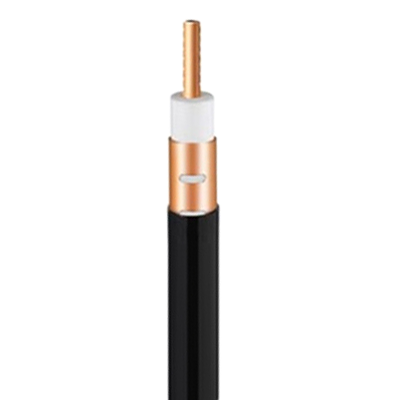

Description
| Weight (+5%) |
F-R Jacket |
Nominal 0.42 kg/m |
| Single Bending Radius |
|
250 mm |
| Repeated Bending Radius |
|
300 mm |
| Number Of Bends |
|
15 |
| Tensile Strength |
|
1300N |
| Operating Temperature |
F-R Jacket |
-40℃~+80℃ |
| Installation |
|
-40℃~+80℃ |
| Storage Temperature |
|
-40℃~+80℃ |
| DC Resistance Inner Conductor |
1.50 Ω/km |
| DC Resistance Outer Conductor |
3.50 Ω/km |
| Dielectric Strength |
DC 10,000V For 1 Min |
| Min. Insulation Resistance |
5,000 MΩ.km |
| Velocity of Propagation |
89+2% |
| Peak Power Rating |
91 kW |
| Characteristic Impedance |
50+2Ω |
| Capacitance |
76 pF/m |
| Jacket Spark Test Voltage |
8000 Vrms |
| VSWR |
|
| 790~960 |
Max.1.30 |
| 1700~1900 |
Max.1.30 |
| 1920~2025 |
Max.1.40 |
| 2110~2200 |
Max.1.40 |
| 2300~2500 |
Max.1.40 |
| 2500~2600 |
Max.1.40 |
| Frequency (MHz) |
Attenuation dB/100m |
Coupling Loss 95% (2 MTR) |
| 700 |
4.3 |
85 |
| 800 |
4.4 |
80 |
| 900 |
4.6 |
80 |
| 1800 |
8.5 |
75 |
| 1900 |
10.0 |
73 |
| 2000 |
10.1 |
73 |
| 2400 |
13.9 |
73 |
| 2600 |
16.9 |
72 |
| 2700 |
18.7 |
72 |
- *Attenuation / Coupling Loss are nominal values.
- *The attenuation may rise by 0.2%/℃ with ambient temperature rising.
- *Maximum attenuation value shall not exceed 110% of nominal value.
- *Maximum coupling loss value shall not exceed “nominal value ± 5dB”.
We are continuously working to enhance our products; therefore, specifications may change. For the latest details, please feel free to contact us.
