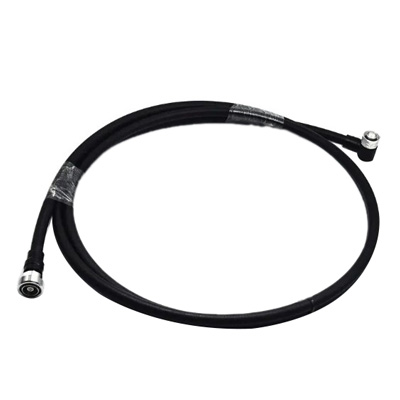

4.3-10 Male to Din Female 1/2″ Super Flexible Jumper

Our factory made jumpers use the new 4.3-10 Male & Din Female connectors. The 4.3-10 Male & Din Female connectors overall design has few internal components which in turn reduces the inter- modulation distortion (IMD). Each assembly is optimized to produce low passive third order inter-modulation. Each assembly is tested and certified for low PIM with a dynamic test performance averaging -155dBc. Each jumper is individually certified to guarantee performance.

Category:

Description

Specifications

Equivalent To JHFS12 Class
Impedance 50 +1 Ohm
Return Loss 30~2200 MHZ < -26dBc
2200~2700 MHZ < -24dBc
PIM -155 dBc
Frequency Range (MHz) DC~2700
Minimum Bending Radius 32mm
Jacket Material PE-UV Resistant
Outer Diameter < 13.45"
Jacket Color Black
Connector A 4.3-10 Male
Connector B Din Female
Cable Length 1-20 Mtr
Option PIM Certified
Weather Standard IEC 68 40/85/ 21
Operating Temperature -40°C to +85°C

For VSWR (Return Loss) specifications corresponding to your required frequency band, please contact Frontier.
